Click on image for Specification's
Main Transceiver:
Yaesu FT-1000MP
Main Features : Dual receive with separate signal meters, 1
per vfo. Enhanced digital signal processing (EDSP). Receiver quad
conversion super heterodyne with Collins mechanical filters. Extensive
menu system.
My
FT-1000MP Audio Settings
Microphone:
Adonis AM 308
Wide-band Electret
Condenser.
Microphone:
Speaker
Yaesu SP 8

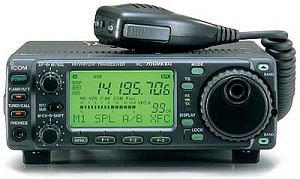

Backup / Portable Transceiver: iCOM iC-706MKIIG-DSP
Main Features : Ultra compact
HF/6 meter/2 meter/440MHz transceiver. Built-in
DSP. The perfect rig for base OR mobile
operations!.
This proven performer is the 3rd radio in iCOM's revolutionary 706 series.
Click on the small image for more info.
Microphone
:
iCOM HM-103
Microphone:
Switch Mode PSU
Samlex 1223
Amplifier :
Linear Amp UK Explorer 1200
2 x
3/500Z Triodes
Rotator ::
Yaesu
G-800SDX
Wind
Load - 17 Sq. Ft.
K-Factor - 1,299 Ft.-Lbs.
Stationary Torque - 288 Ft.-Lbs.
Rotation Torque - 43-79 Ft.-Lbs.
Max. Vert. Load - 440 Lbs.
Max. Vert. Load - 1,320Lbs.
Antenna :
Recently upgraded to another 5 Element Yagi.
Click here for various photo's and info's
Mast:
17 mtr Telescopic
Tilt Over Tower
