There's many great antenna manufactures making antenna's for our band, ZX Yagi now of Germany, DXSR from France, G.B Antenna's of Holland and PKW from Italy, just to name a few.

 I decided to go for a 5 element ( Super ) G.B antenna made
by George in holland.

After receiving and opening the 3mtr long package from Holland, I was really pleased with the quality of craftmanship, but this would be put to the test when building the antenna.

click on the thumbnail's to enlarge

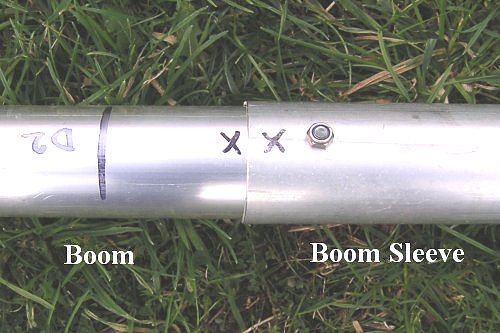

I liked the idea that the boom goes inside the boom sleeve (to join the  2 boom sections together). On beam's I've used in the past, the sleeve is thinner and goes inside the boom. So George's way makes a stronger boom.

   Click image for large version.

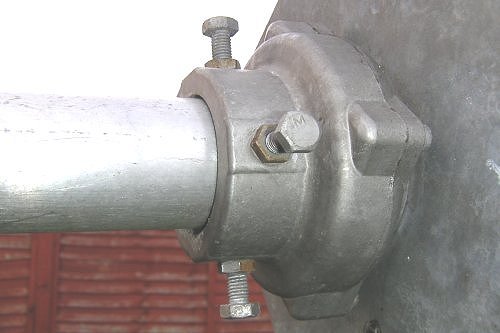

While the tower was down,
I decided to upgrade the
 stub pole / rotator bearing and coaxial cable.

   Click image for large version.


Westflex 1Ø3 ultra loss loss 5Ø ohm Coaxial cable was used,

Attenuation in dB/100m at 100Mhz
rg213 = 7dB loss, W103 = 3.2dB

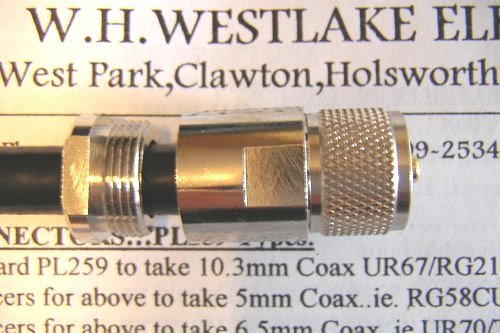

PL259's used are pressure sleeve
 gland type.

   Click image for large version.

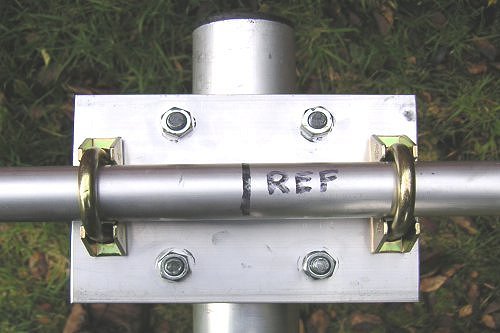

element mounting plates.

100x150mm aluminum

   Click image for large version.


Aluminum Grade:

  AIMgISiCU-6061-T6/AIMg Si0,5 F22

Element tube diameter's 25mm,

23mm, & 19mm

   Click image for large version.

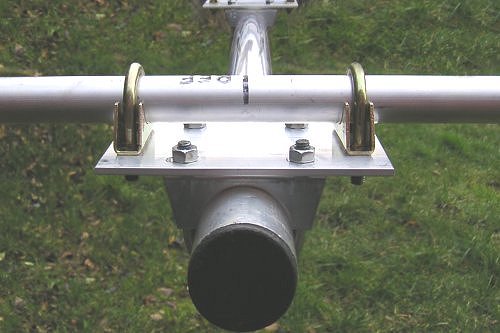

element and element mounting plate on the boom.

  Click image for large version.


Side view of the element and element mounting plate on the boom.

   Click image for large version.

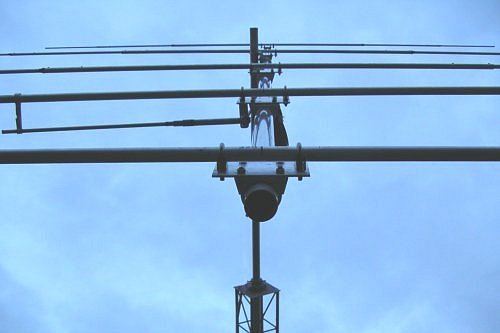

Checking element alignment, look's straight to me.

End view of the boom while the
tower was tilted 45'.

   Click image for large version.

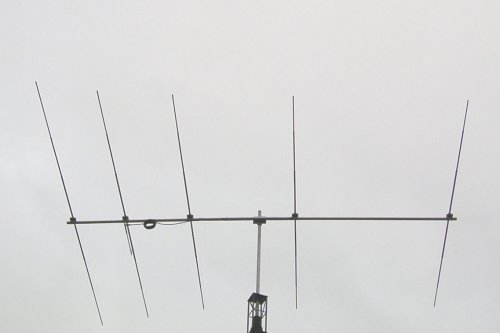

G.B Antenna  5 element Super

I'll uploaded a better
photo soon.

   Click image for large version.


After mounting it on the tower, SWR could not be
 better, 1.2:1 all over our band, also 1.7:1 on or around 28.500.

Over all, I am very happy that I purchased an antenna by G.B Antenna's of Holland, instructions accompanying the antenna were easy to understand, all elements were perfectly cut, every hole for the self-tapping screw's lined up true, definitely an easy and straight forward installation.

Finally, George of G.B Antenna's was very helpful, before I ordered the antenna, I phoned him a couple of times with a few questions, we exchanged many e-mails, he phoned me to let me know the antenna was posted, in fact, I received the antenna only 5 day's after sending payment !,
GREAT SERVICE GEORGE,
THANK YOU !.

I would definitely recommend G.B Antenna's.

http://www.gbanttow.nl/
No payment or favours were received for this article
